Route 53

Summary: Route 53 is AWS’s highly available, scalable, fully managed DNS service that translates human-friendly hostnames into IP addresses. It’s also a domain registrar and supports health checks and multiple routing policies to control how traffic is directed to your resources.

DNS Basics

DNS (Domain Name System) translates human-friendly hostnames into machine IP addresses (e.g. www.google.com → 172.217.18.36). It’s the backbone of the internet.

DNS uses a hierarchical naming structure, read right-to-left - each level is a “child” zone delegated by the level above it:

.com                    ← TLD (Top Level Domain)
└── example.com         ← SLD (Second Level Domain)
    ├── www.example.com  ← subdomain (e.g. web server)
    └── api.example.com  ← subdomain (e.g. API Gateway endpoint)
  • TLD - managed by a registry (e.g. Verisign for .com)
  • SLD - the domain you register under a TLD
  • Subdomain - anything you create under your SLD; each can point to a different resource

Breaking down a full URL, http://api.www.example.com:

PieceValueRole
httpprotocolhow to connect
.comTLDtop level domain
example.comSLDsecond level domain
www.example.comsubdomainone level under the SLD
api.www.example.comFQDNFully Qualified Domain Name - the full chain from host to TLD
everything togetherURLprotocol + FQDN

Terminology:

  • Domain registrar - where you register a domain name (Amazon Route 53, GoDaddy, etc.)
  • DNS records - A, AAAA, CNAME, NS, …
  • Zone file - contains the DNS records for a domain
  • Name server - resolves DNS queries (authoritative or non-authoritative)
  • TLD - .com, .us, .in, .gov, .org, …
  • SLD - amazon.com, google.com, …

How DNS Resolution Works

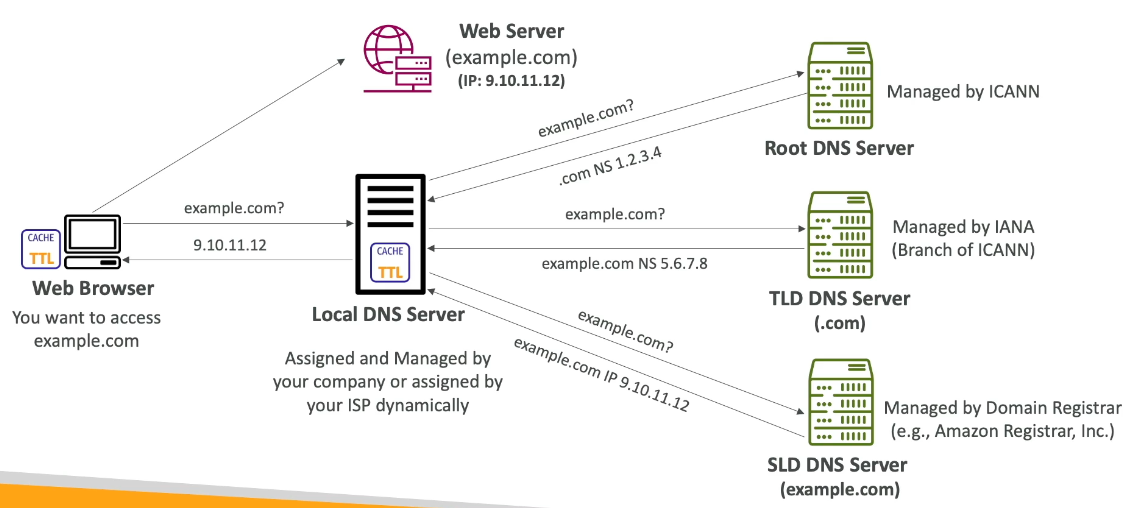

DNS resolution flow from browser through local, root, TLD, and SLD DNS servers

Resolution walks top-down through a chain of servers, with each step returning either the answer or a referral to the next server down:

  1. Your browser wants to access example.com and asks the local DNS server (assigned by your ISP or company).
  2. The local DNS server has nothing cached, so it asks a root DNS server (managed by ICANN) “example.com?” - the root server doesn’t know the answer, but returns the address of the .com TLD server.
  3. The local DNS server asks the TLD server (managed by IANA, a branch of ICANN) - it doesn’t have the final answer either, but returns the address of the SLD server (managed by the domain registrar, e.g. Amazon Registrar) that’s authoritative for example.com.
  4. The local DNS server asks the SLD server, which returns the actual IP (9.10.11.12).
  5. The local DNS server caches the result (respecting the TTL) and returns the IP to the browser, which then connects directly to the web server.

Each server in the chain (local, root, TLD, SLD) caches its own TTL so repeat lookups skip steps - this is why lowering a TTL increases query volume and cost.

Key Concepts

  • Route 53 is a highly available, scalable, fully managed, and authoritative DNS service
    • authoritative = you (the customer) can update the DNS records
  • Route 53 is also a domain registrar
  • Provides the ability to check the health of your resources
  • The only AWS service with a 100% availability SLA
  • Name comes from port 53, the traditional DNS port

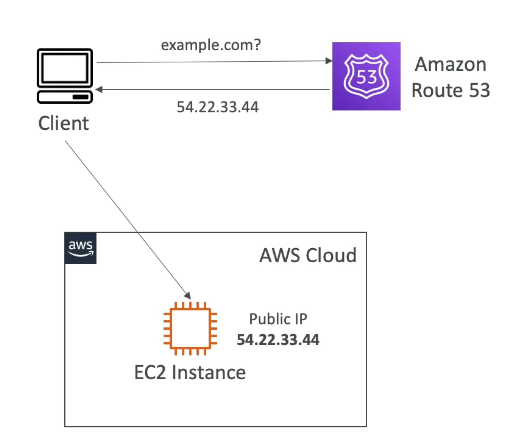

route-53-intro

Records

A record defines how traffic is routed for a domain. Each record contains:

  • Domain/subdomain name - e.g. example.com
  • Record type - e.g. A or AAAA
  • Value - e.g. 12.34.56.78
  • Routing policy - how Route 53 responds to queries
  • TTL - how long the record is cached at DNS resolvers

Route 53 supports the following DNS record types, though only a handful matter for the exam:

TypeMaps hostname to…Notes
AIPv4 addresse.g. example.com → 12.34.56.78
AAAAIPv6 addresssame idea as A, for IPv6
CNAMEanother hostnametarget must have an A/AAAA record; can’t be used for the zone apex (e.g. no example.com, but www.example.com is fine)
NSthe hosted zone’s name serverscontrols how traffic is routed/delegated for a domain

Advanced types (know they exist, not the details): CAA / DS / MX / NAPTR / PTR / SOA / TXT / SPF / SRV

Hosted Zones

A container for records that define how to route traffic for a domain and its subdomains.

  • Public hosted zones - route traffic on the Internet (public domain names), e.g. application1.mypublicdomain.com
  • Private hosted zones - route traffic within one or more VPCs (private domain names), e.g. application1.company.internal
  • Cost: $0.50/month per hosted zone

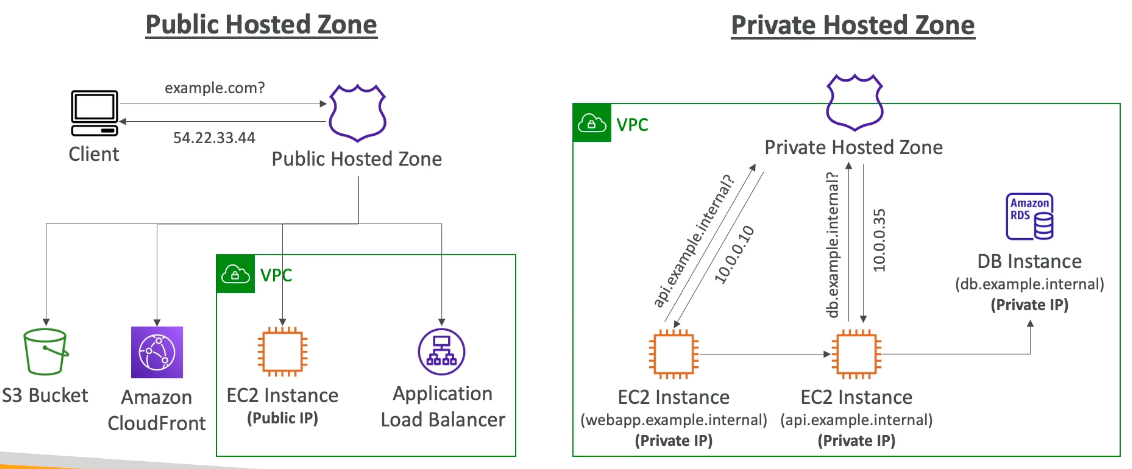

public vs private hosted zones

Records TTL (Time to Live)

High TTL (e.g. 24 hr)Low TTL (e.g. 60 sec)
Traffic on Route 53LessMore (costs more)
Record freshnessPossibly outdatedOutdated for less time
FlexibilitySlower to changeEasy to change quickly

TTL is mandatory for every DNS record except Alias records.

CNAME vs Alias Records

AWS resources (load balancers, CloudFront, etc.) expose an AWS-generated hostname, which is why Alias records exist.

CNAMEAlias
Points toAny hostnameAn AWS resource
Zone apex (root domain)Not allowedAllowed
CostN/AFree
Health checkN/ANative health check
TTLSet manuallyCan’t be set (managed automatically)
  • Alias records are always type A/AAAA for AWS resources (IPv4/IPv6)
  • They automatically recognize changes in the resource’s IP addresses

Zone apex + AWS resource is the classic exam trap: you cannot use a CNAME for a root domain (e.g. example.com) pointing at an ELB - you must use an Alias record instead.

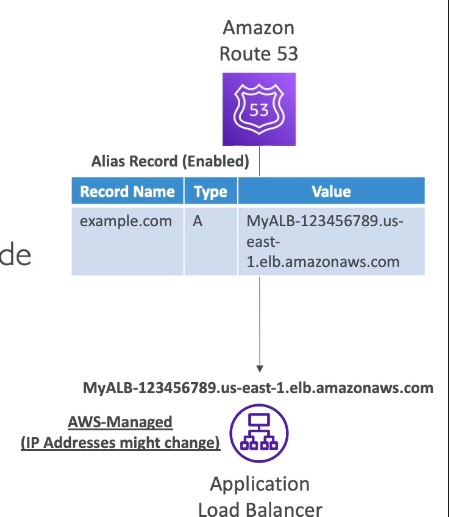

alias records example

Alias record targets:

  • Elastic Load Balancers
  • CloudFront distributions
  • API Gateway
  • Elastic Beanstalk environments
  • S3 websites
  • VPC Interface endpoints
  • Global Accelerator accelerator
  • Another Route 53 record in the same hosted zone

You cannot set an Alias record directly for an EC2 DNS name.

Routing Policies

Define how Route 53 responds to DNS queries. Route 53 supports:

  • Simple
  • Weighted
  • Failover
  • Latency-based
  • Geolocation
  • Multi-value answer
  • Geoproximity (via Route 53 Traffic Flow)

Routing policies vs. load balancers

Route 53 never touches traffic - it only answers “what IP/hostname should I use?” when a client does a lookup; once the client has that answer, Route 53 is out of the picture and the client connects directly. A load balancer sits in the traffic path and makes a live, per-request decision. Routing policies decide which answer to hand out per DNS lookup (cached for the TTL), not per request.

Why need both: routing policies work across regions, accounts, and even non-ELB resources (e.g. routing between two ELBs in different regions, or between an S3 bucket and an EC2 instance) - things a single ELB can’t do since it only balances across targets within its own scope. ELB balances within a region; Route 53 balances/fails over across regions or resource types.

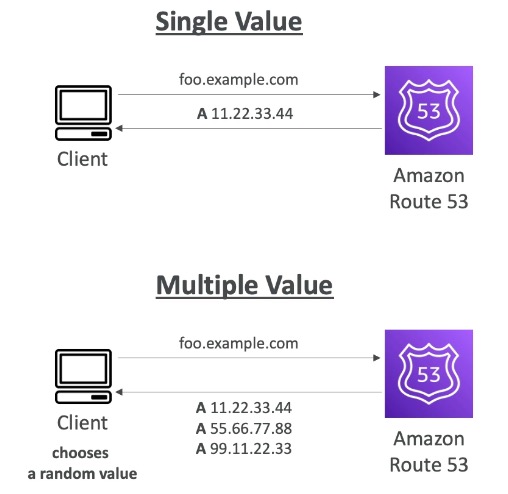

Simple

  • Typically routes traffic to a single resource
  • Can specify multiple values in the same record - if so, the client picks one at random
  • When Alias is enabled, specify only one AWS resource
  • Cannot be associated with health checks

routing policy simple

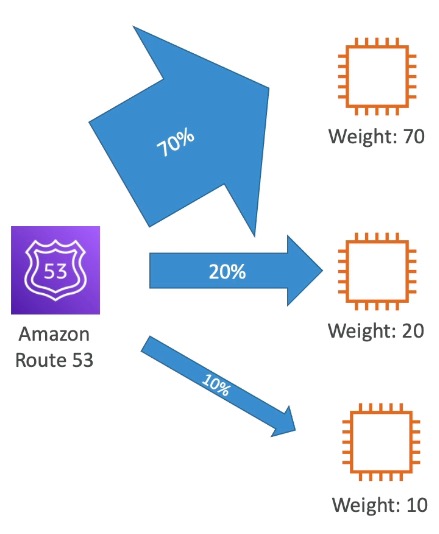

Weighted

  • Controls the % of requests sent to each resource
  • Assign each record a relative weight: \text{traffic \%} = \frac{\text{weight of record}}{\text{sum of all weights}}
  • Weights don’t need to sum to 100
  • DNS records must have the same name and type
  • Can be associated with health checks
  • Use cases: load balancing between regions, testing new app versions
  • Assign a weight of 0 to stop sending traffic to a resource - if all records have weight 0, all are returned equally

routing policy weighted

Latency-based

  • Redirects to the resource with the lowest latency to the user
  • Latency is based on traffic between users and AWS Regions (not physical distance) - e.g. German users may be directed to the US if that’s the lowest-latency region
  • Can be associated with health checks (adds failover capability)

Failover (active-passive)

  • Mandatory health check; if it fails, traffic routes to the backup instance
  • Can be associated with health checks

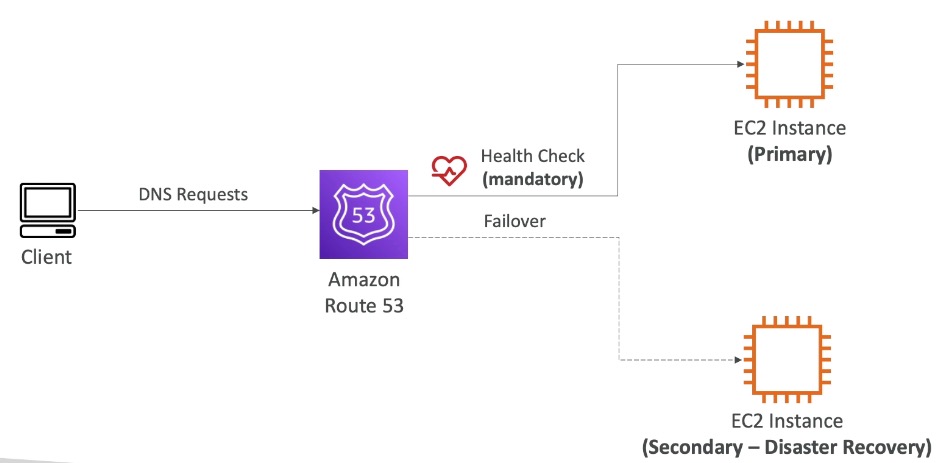

routing-policy-failover

Geolocation

  • Different from latency-based: based on user location, not network latency
  • Specify by continent, country, or US state (most precise location wins on overlap)
  • Should create a “Default” record for unmatched locations
  • Use cases: website localization, content restriction, load balancing
  • Can be associated with health checks

Geoproximity

  • Routes traffic based on the geographic location of users and resources
  • Shift more/less traffic using bias values:
    • Expand (1 to 99) → more traffic to the resource
    • Shrink (-1 to -99) → less traffic to the resource
  • Resources can be AWS (specify region) or non-AWS (specify latitude/longitude)
  • Requires Route 53 Traffic Flow (advanced feature)

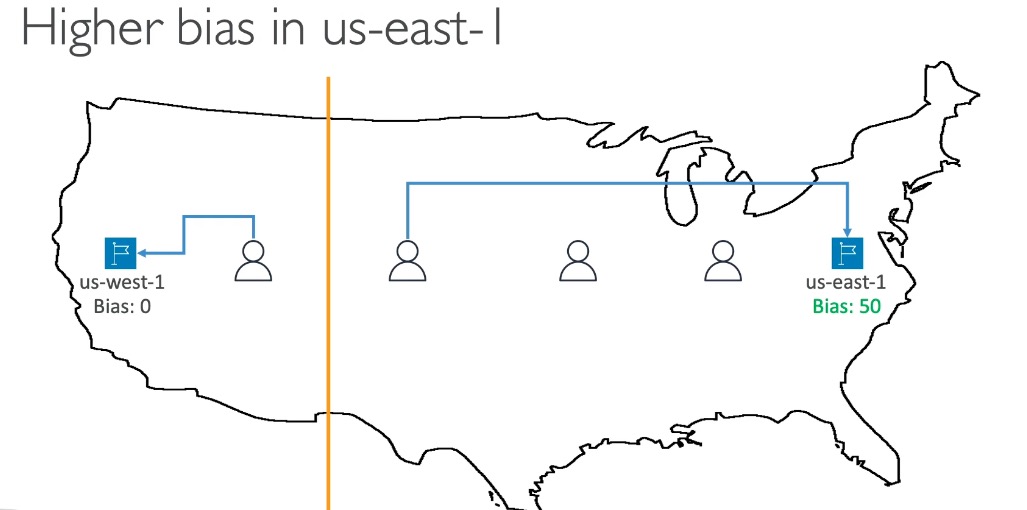

route53-routing-policy-geoproximity-simple-example

IP-based routing

  • Routes based on clients’ IP addresses
  • You provide a list of CIDRs for your clients mapped to endpoints/locations
  • Use cases: optimize performance, reduce network costs (e.g. route users from a particular ISP to a specific endpoint)

What's a CIDR? CIDR (Classless Inter-Domain Routing) notation expresses an IP range as a base address + prefix length, e.g. 192.168.1.0/24. The /24 is how many leading bits are fixed for the network portion, leaving the rest for host addresses.

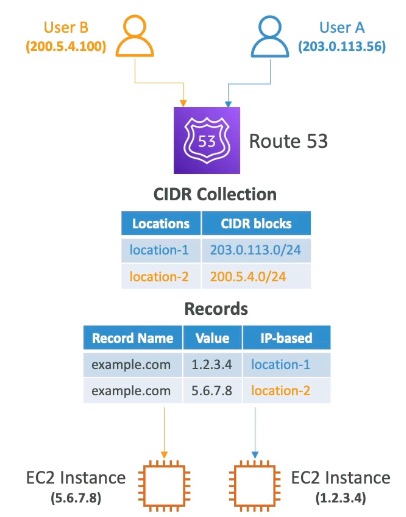

route53-routing-policy-ip-routing

Multi-Value Answer

  • Use when routing traffic to multiple resources
  • Route 53 returns multiple values/resources
  • Can be associated with health checks (returns only healthy resources)
  • Up to 8 healthy records returned per query

Multi-Value answer is not a substitute for having an ELB - it does simple client-side random selection, not real load balancing.

Health Checks

  • HTTP health checks are only for public resources

1. Health checks that monitor an endpoint (application, server, other AWS resource)

  • ~15 global health checkers check the endpoint
    • Healthy/unhealthy threshold: 3 (default)
    • Interval: 30 sec (can lower to 10 sec for higher cost)
    • Supported protocols: HTTP, HTTPS, TCP
    • If >18% of health checkers report healthy, Route 53 considers the endpoint healthy; otherwise unhealthy
    • You can choose which locations Route 53 uses for checks
  • Passes only when the endpoint responds with 2xx or 3xx status codes
  • Can pass/fail based on text found in the first 5120 bytes of the response
  • Configure your router/firewall to allow incoming requests from Route 53 health checkers

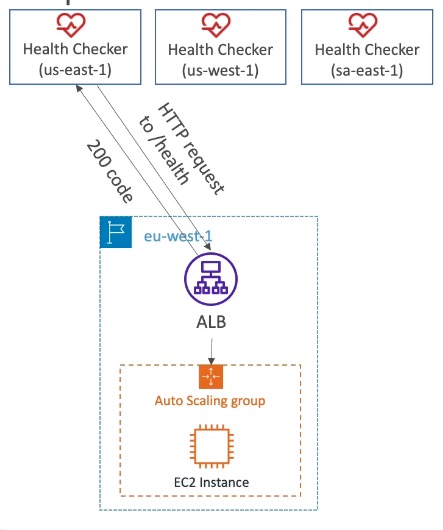

route53-health-checks-monitor-an-endpoint

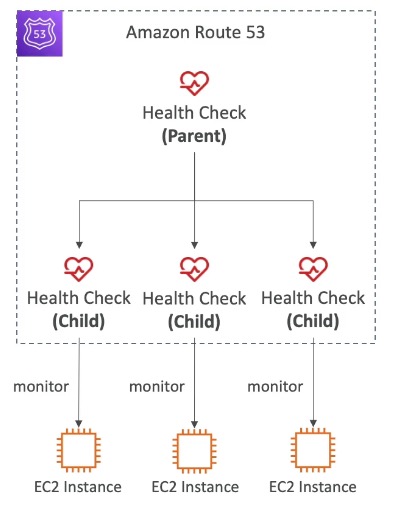

2. Calculated health checks (monitor other health checks)

  • Combine results of multiple health checks into one, using OR / AND / NOT
  • Can monitor up to 256 child health checks
  • Specify how many child checks must pass for the parent to pass
  • Use case: perform maintenance without causing all health checks to fail

route53-health-checks-calculated-health-checks

3. CloudWatch alarm health checks (full control - helpful for private resources)

  • Route 53 health checkers sit outside the VPC and can’t reach private endpoints directly
  • Workaround: create a CloudWatch metric + alarm, then a health check that monitors the alarm itself (e.g. DynamoDB throttles, RDS alarms, custom metrics)

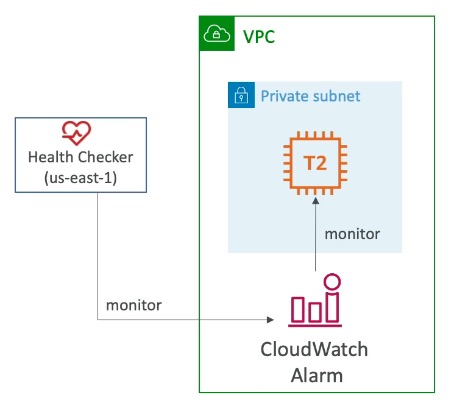

route53-health-checks-private-hosted-zones

Health checks integrate with CloudWatch metrics.

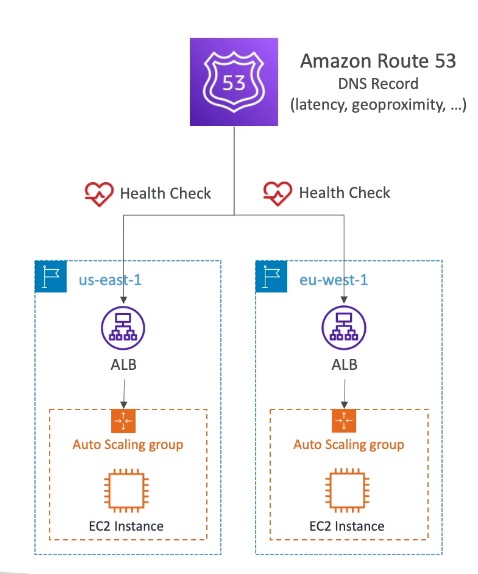

route53-health-checks

Domain Registrar vs DNS Service

  • You buy/register a domain name with a domain registrar (Amazon Registrar, GoDaddy, etc.), typically paying annual charges
  • The registrar usually also provides a DNS service to manage your records - but you can use a different DNS service instead
  • Example: purchase a domain from GoDaddy, use Route 53 to manage its DNS records
  • To use a 3rd-party registrar with Route 53:
    1. Create a Hosted Zone in Route 53
    2. Update the NS records on the 3rd-party registrar’s site to point to the Route 53 name servers

Domain Registrar != DNS service - they're commonly bundled but are separate concerns, and the exam likes to test this distinction.

Configuration & Limits

  • Hosted zone: $0.50/month
  • Calculated health checks: up to 256 child health checks
  • Multi-Value Answer: up to 8 healthy records returned per query
  • Health check interval: 30 sec default, 10 sec (higher cost)
  • Health check healthy threshold: 3 (default)
  • Healthy consensus: >18% of global health checkers must report healthy

Exam Tips & Gotchas

  • Alias vs. CNAME for zone apex is one of the most frequently tested traps - remember Alias is required for root domains pointing to AWS resources
  • TTL is mandatory for all records except Alias records
  • Multi-Value Answer routing is not a substitute for an ELB
  • Alias records cannot target an EC2 DNS name directly
  • Geolocation is based on user location; Latency-based is based on network latency between user and AWS Region - don’t mix these up

Integrations

  • ELB - common Alias record target; Route 53 can route/fail over across multiple ELBs in different regions
  • CloudFront - common Alias record target for CDN distributions
  • EC2 - cannot be an Alias target directly (use an ELB in front instead)
  • CloudWatch - health checks can monitor CloudWatch alarms for private resources; health checks report metrics to CloudWatch

Review Questions
